Design and Implementation of a Simple Networking Project #1
Project #1 Case Study and RequirementsDesign a network in Cisco Packet Tracer to connects ACCOUNTS and DELIVERY departments through the following:
- Each department should contain at least two PCs.
- Appropriate number of switches and routers should be used in the network.
- Using the given network 192.168.40.0, all interfaces sould be configured with correct IP addresses, subnet mask and gateways.
- All devices in the network should be connected using appropriate cables.
- Test communication between devices in both ACCOUNTS and DELIVERY departments.
- Creating a Simple Network using a Router and Access Layer Switch.
- Connecting Networking devices with Correct cabling.
- Connecting two Networks using a Router.
- Subnetting and IP Addressing.
- Assigning IP Addresses to Router's interfaces.
- Static IP Address allocation to Host Devices.
- Test and Verifying Network Communication.

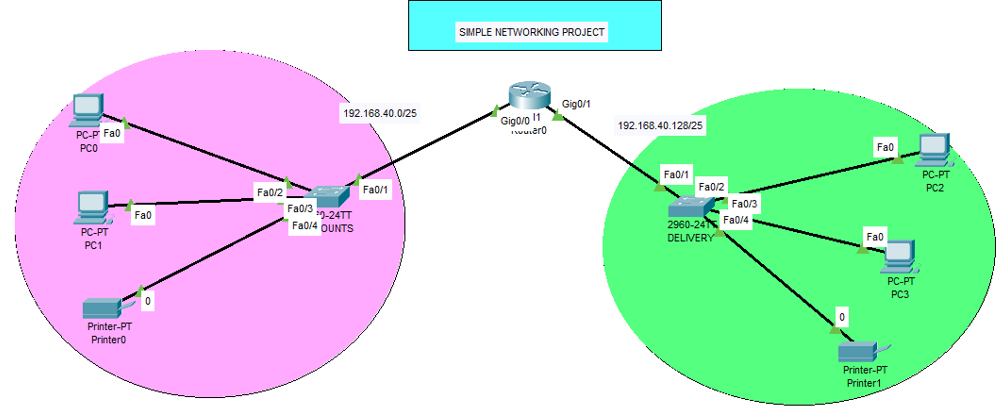

The network topology below satisfy the user requirements above and everything is verified, tested and working fine. You can get source file (Packet Tracer File) or watch on YouTube below.
