Design and Implementation of a Small Office Home Office Network -SOHO (Project #2)

Project #2 Case Study and Requirements
XYZ company is a fast-growing company in Eastern Australia with more than 2 million customers globally. The company deals with selling and buying of food items, which are basically operated from the headquarters. The company is intending to open a branch near the local village Bonalbo. Thus, the company requires young IT graduates to design the network for the branch. The network is intended to operate separately from the HQ network. Being a small network, the company has the following requirements during implementation;
  • One router and one switch to be used (all CISCO products).
  • 3 departments (Admin/IT, Finance/HR and Customer service/Reception).
  • Each department is required to be in different VIANS.
  • Each department is required to have a wireless network for the users.
  • Host devices in the network are required to obtain IPv4 address automatically.
  • Devices in all the departments are required to communicate with each other.
Assume the ISP gave out a base network of 192.168.1.0, you as the young network engineer who has been hired, design and implement a network considering the above requirements.

Technologies Implemented
  1. Creating a Simple Network using a Router and Access Layer Switch.
  2. Connecting Networking devices with Correct cabling.
  3. Creating VLANs and assigning ports VLAN numbers.
  4. Subnetting and IP Addressing.
  5. Configuring Inter-VLAN Routing (Router on a stick).
  6. Configuring DHCP Server (Router as the DHCP Server).
  7. Configuring WLAN or wireless network (Cisco Access Point).
  8. Host Device Configurations.
  9. Test and Verifying Network Communication.

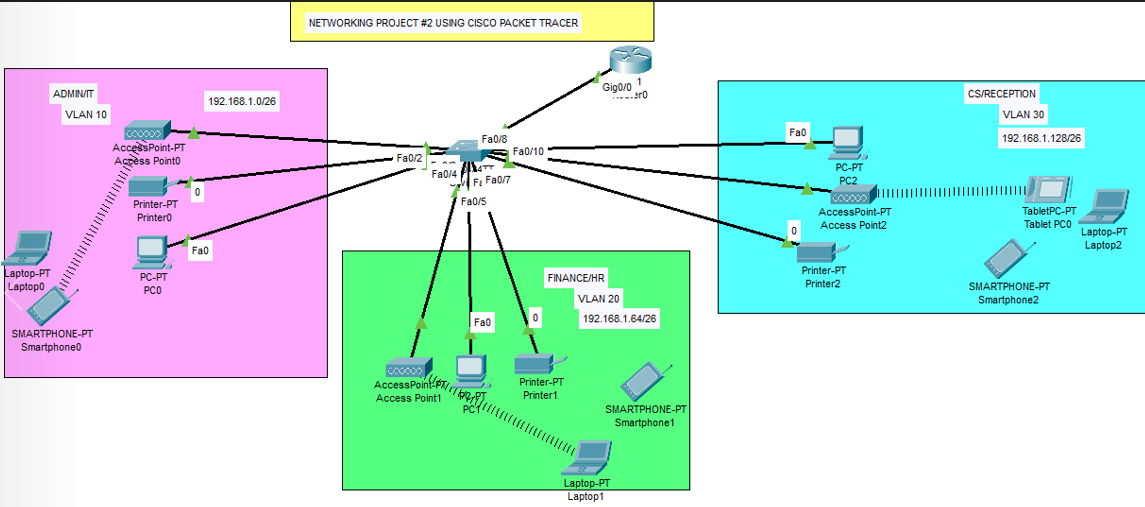

Network Topology Created
The network topology below satisfy the user requirements above and everything is verified, tested and working fine. You can get source file (Packet Tracer File) or watch on YouTube below.

How to Get Source File or Watch the Project on YouTube

  1. Get Packet Tracer File

    To get this Packet Tracer File with it's case study, kindly join our channel membership first to support us. Joining channel membership is different from subscribing, here you click on join button and it's chargable as low as $1. It is our policy that we only provide exclussive resources to channel members not subscribers. Subscribers are only given a chance to watch the video, follow keenly and design and implement the similar topoloy but they won't get any ready file.

    Join Now

  2. Watch Full Project on YouTube

    Get to watch on how to implement the project from the explanation of a tutor that will take you through a simple and easy to understand steps while following good network design practices.

    Watch Here
